Description

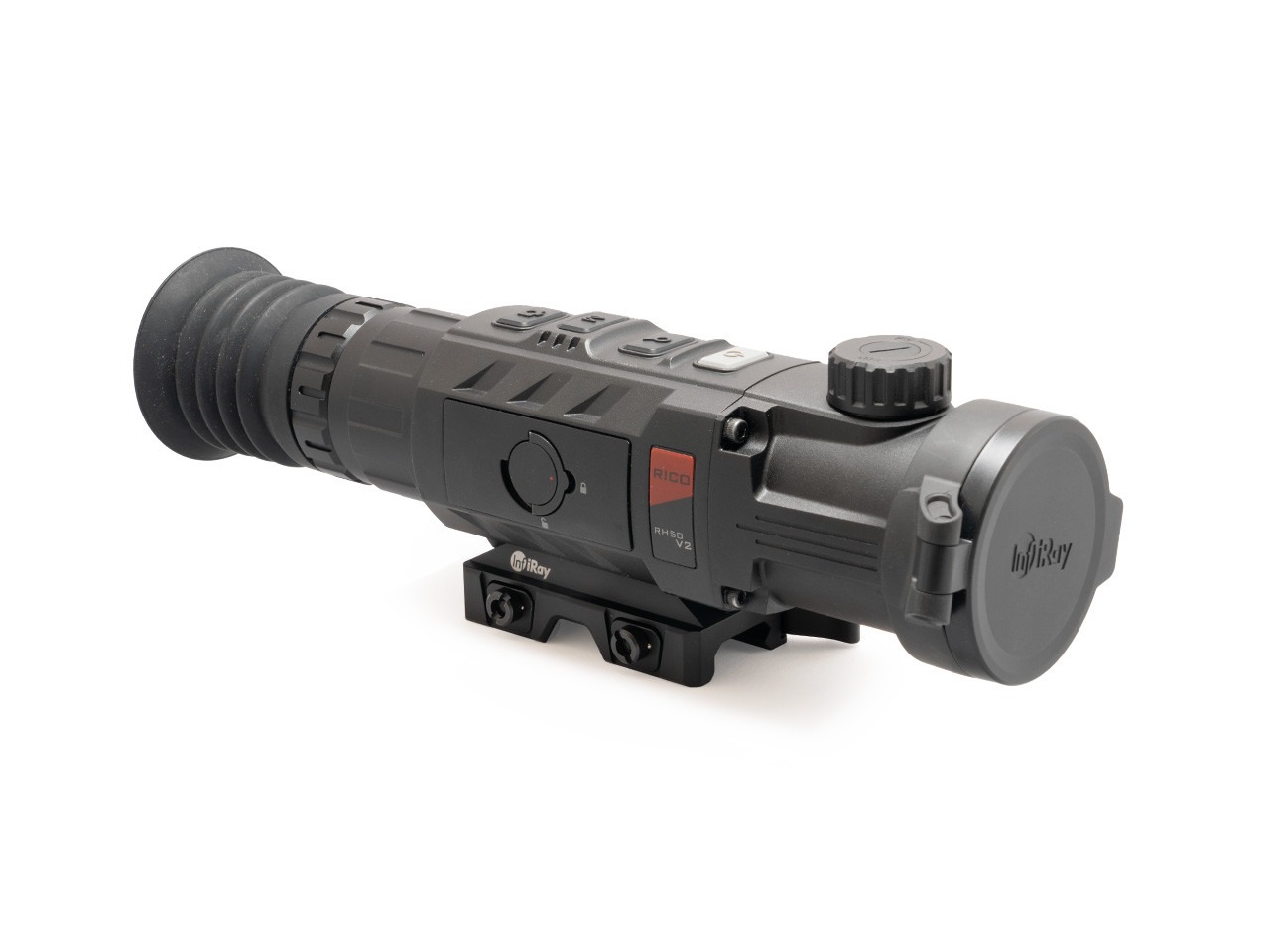

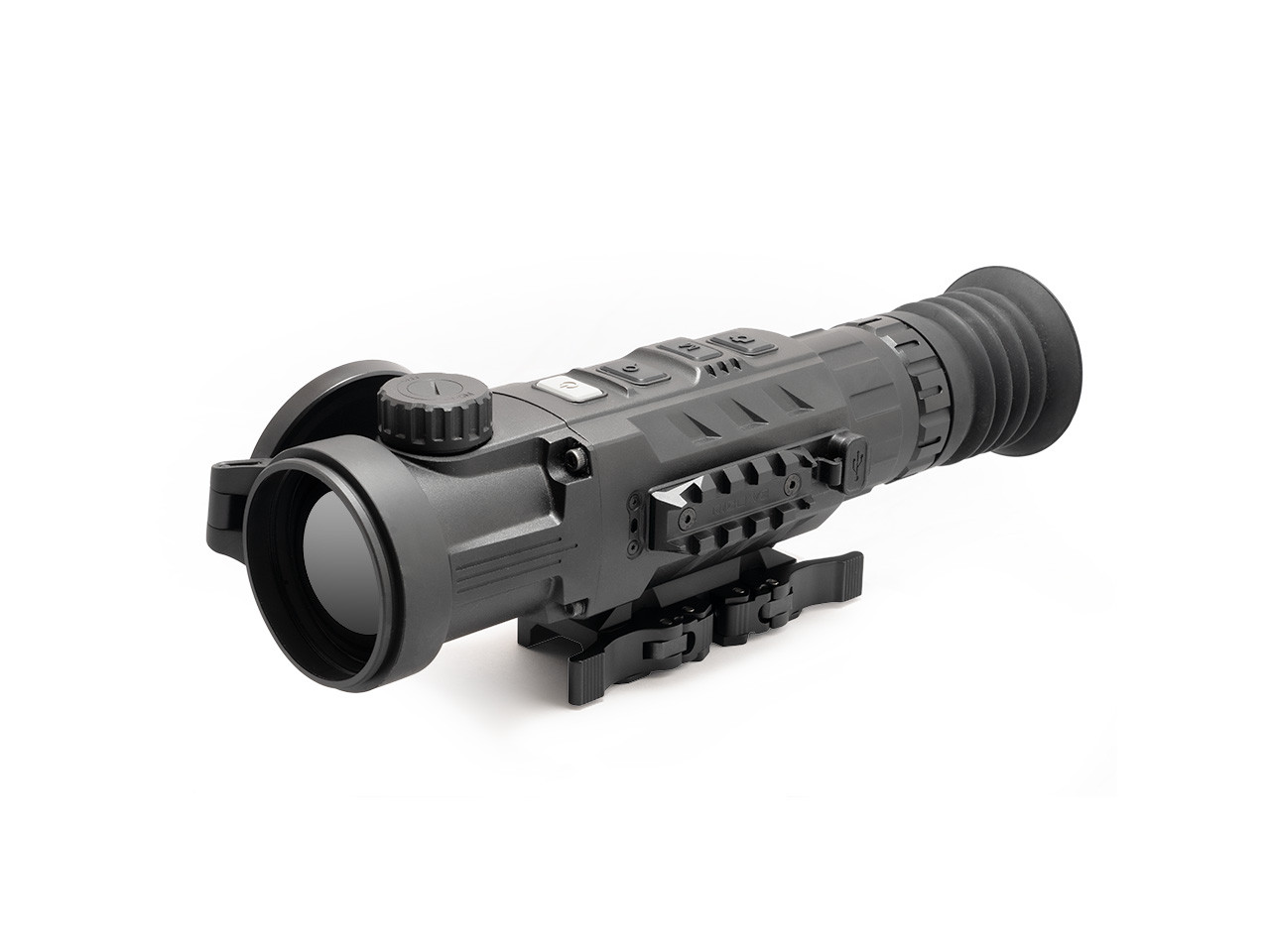

Based on the popular RICO Mk1 series, the RICO Mk1 V2 was redesigned with improved audio recording, a blazing fast 60 Hz refresh rate, and an impressively upgraded 20 mK sensitivity. The heart of the Mk1 V2 features a high-performance InfiRay Micro II core and an extremely high-contrast AMOLED HD display. The Mk1 V2 takes its image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of its MATRIX III processor. Unmatched image quality combined with an intuitive and easy-to-use interface, picture-in-picture function, two long-lasting battery packs with 6+ hours of run-time each, aluminum-alloy housing, 1000 G/s2 shock-resistance, and 32 GB of internal memory give you all the tools you need to take your hunt to the next level.
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 50mm |
| Sensor Resolution: | 640×512 |
| Detection Range: | 2400 Yards |
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 60hz |
| Optical Magnification: | 3X |
| Digital Magnification: | 4X |
| Objective Diameter: | 50mm |
| Objective F#: | 1.0 |
| Onboard Recording: | Yes |
-
Optics
Objective Focal Length
50mm
Detection Range
2400 Yards
Optical Magnification
3X
Digital Magnification
4X
Objective Lens Material
Germanium
Horizontal Angular Field of View
8.8°
Vertical Angular Field of View
6.6°
Objective Diameter
50mm
Eye Relief
55mm
Focusing Mechanism
Manual Focus
Objective F#
1.0
Diopter Range
-4 to +4
Display Type
AMOLED
Display Resolution
1024×768
-
Features & Performance
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Reticle
7 (2 Dynamic, 5 Static)
Rangefinder
ILR-1000 Laser Rangefinder (Optional/Not Included)
Stand-by Mode
Yes
One-Shot Zero
Yes
Picture-in-Picture
Yes
Image Capture
Yes
Wifi
Yes
Mobile App
Yes
User-Updatable Firmware
Yes
Connector Type
USB-C
Connector Output
Power/Data
Onboard Recording
Yes
Storage Capacity
32GB
Power Source
USB-C External, IBP-1 Li-ion Battery Pack
Run Time
6+
External Power Source
USB-C
Startup Time
<10 Seconds, Instant from Standby
Warranty
5 Years
Country of Manufacture
China
-
Environmental Specifications
Operating Temperature Range
-4°F~122°F
Ingress Protection
IP67
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
-
Physical
Length
9.84
Width
2.56
Height
2.28
Weight
29.28 Oz.
Housing Material
Aluminum
Mounting Interface
Picatinny MIL-STD 1913 Rail
-
Sensor Specifications
Device Technology
Thermal Imaging
Sensor Type
InfiRay MICRO II
Sensor Resolution
640×512
Sensor Pixel Size
12μm
Sensor Frame Rate
60hz
Thermal Sensitivity
<20mk
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
