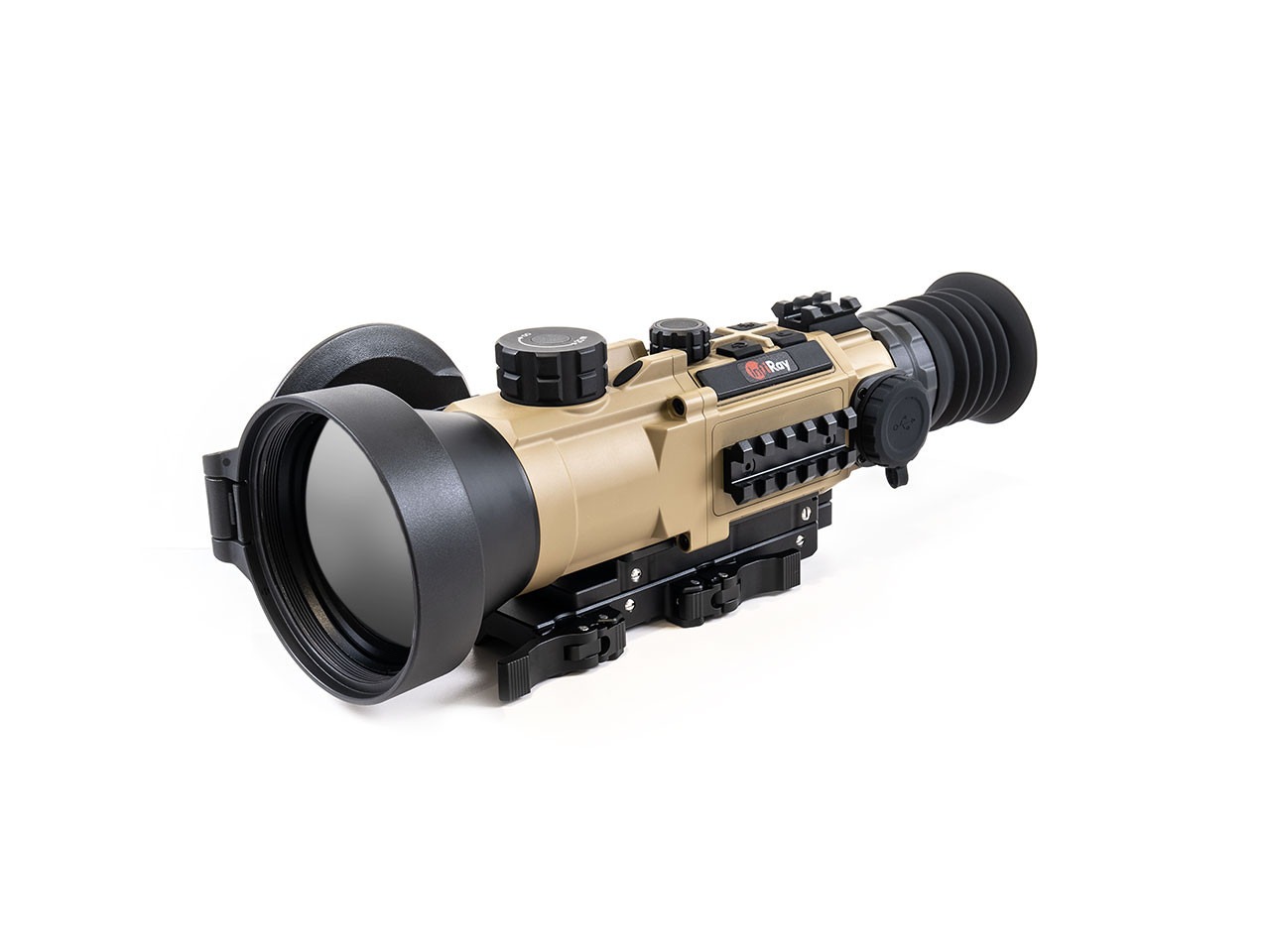

RICO HYBRID 640 4.5X 75mm Multi-function Thermal Weapon Sight (DEMO)

$6,800.00

The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X.  The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560×1920 UHD display allows for an extra large sight picture with edge to edge clarity. The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.

SKU: HYBRID75-DEMO Categories: , Tags: , , , ,

Description

DEMO UNIT available for $6800

The InfiRay Outdoor RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.

The ILR-1000-2 Laser Rangefinder (AC82) connects to the HYBRID via USB-C (data and power), providing real-time ranging data that can even integrate with user-supplied ballistics data and apply hold-over on a custom reticle. See page 45 for details.

PLEASE NOTE: The HYH50W and HYH75W both use a IBP-1 type battery (4400mAh). THE IBP-1 battery that ships with the HYH50W is the same battery used by the RICO Mk1 and RICO Pro Series. The battery that ships with the HYH75W is an enhanced IBP-1 that features the FDE ceramic coated finish and improved ingress protection.  The HYH75W will run on the original IBP-1 battery, but will not be IP67 weatherproof in this configuration. For best results, always use the batteries that shipped with the product.

  • Optics

    Objective Focal Length

    75mm

    Detection Range

    3600 Yards

    Optical Magnification

    4X

    Digital Magnification

    8X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    5.9°

    Vertical Angular Field of View

    4.4°

    Objective Diameter

    75mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    60mm

    Diopter Range

    -4 to +2

    Display Type

    AMOLED

    Display Resolution

    2560×1920

  • Features & Performance

    Power Source

    USB-C External, IBP-1H Li-ion Battery Pack

    Reticle

    9 (7 Static, 1 DIY, 1 BDC)

    Color Palettes

    White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline

    Rangefinder

    ILR-1000-2 LRF (Optional/Not Included)

    Stand-by Mode

    Yes

    One-Shot Zero

    Yes

    Picture-in-Picture

    Yes

    Wifi

    Yes

    Image Capture

    Yes

    Mobile App

    Yes

    User-Updatable Firmware

    Yes

    Connector Type

    USB-C

    Connector Output

    Power/Data

    Onboard Recording

    Yes

    Storage Capacity

    64GB

    Run Time

    6+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

  • Physical

    Weight

    45.08 Oz.

    Height

    3.58

    Width

    4.13

    Length

    12.20

    Housing Material

    Magnesium Alloy

    Mounting Interface

    Picatinny MIL-STD 1913 Rail

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    InfiRay MICRO II

    Sensor Resolution

    640×512

    Sensor Pixel Size

    12μm

    Sensor Frame Rate

    50hz

    Thermal Sensitivity

    <25mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

Additional information

Digital Magnification, x

2X, 3X, 4X
Objective lens system

50mmF/1.0
Angular FOV at Optical Magnification (Horizontal x Vertical), degrees

H8.5° x V6.4°
Linear FOV at Optical Magnification @ 100yrds/90m (Horizontal x Vertical), yd/m

H15 / 13.7 x V11.2 / 10.2
Eye relief, mm

46.6
Focus range, yard

0.8 to infinity
Diopter Adjustment, D

-5; +5
Reticle W/E adjustment increments per pxl

0.54” at 1X (3.0x magnification)
0.14” at 4X multiplication
Core resolution, pxl

640 x 480
Pixel pitch, µm

12
Start-up time, min., sec.

20
Image refresh rate, Hz

50
Thermal Sensitivity (NETD), mK

<40
Display type and resolution, pxl

OLED 1024×768
Detection Range, (6 ft tall target), approx., yd/m

2200 / 2000
Dimensions, in/mm

8.46”x3.15”x2.36” / 215x80x60
Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g

20 / 570
Power supply

3V CR123 (two) or
3.7V rechargeable (two)
or 5V DC (USB C-type)
Estimated battery life, hours

3.5 from two 3V CR123
Operating temperature, typical, °F

-14°F to +122°F
Water intrusion/°С

IP66
Humidity, %

up to 96%
