RIX L6 640 Resolution 50mm 2.8x-8.4x Ocular Magnification

$3,799.00

SKU: LEAPL6 Category:

Description

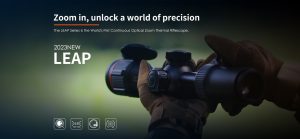

  • The LEAP 6 (L6) is the world’s first continuous optical zoom 640 thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.
  • It features a 30mm standard tube diameter for easy mounting and offers a range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options.
  • Enjoy extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuous operation, and with just three batteries, you can experience a full day of uninterrupted usage.
  • Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions.

CORE CHARACTERISTICS

Optic zoom: 2.8x-8.4x
Digital zoom: 1x – 4x
Resolution: 640×360
Display: 1920×1080 OLED
Frame rate: 50Hz

PACKAGE INCLUDES

  • LEAP L6 series 640 resolution thermal imaging scope
  • 30 mm QD mount
  • 2X 18650Lithium batteries
  • 2 bay battery charger
  • Portable bag
  • Eyeshade
  • Type-C data cable
  • Lens cloth

Manual-LEAP (lingjuimg.com)

Model L6
Sensor Type VOx Uncooled
Resolution 640×360
Pixel pitch, μm 12
NETD, mk <25
Frame rate, Hz 50
Optics Objective lens 50mm
Optical zoom, x 2.8-8.4
Field of view (HxV), degrees/m@100m 8.8-15.4
Digital zoom, x 1-4
Eye relief, mm 50
Diopter adjustment, D -5 – +5
Range Performance Detection range, y 2600
Display Type OLED
Resolution, pixels 1920×1080
Video Recorder Video/Photo resolution, pixels 960×720
Video/Photo format .mp4 / .jpg
Built-in memory, GB 32
Wi-Fi Wireless protocol Wi-Fi
Frequency, gigahertz 2.4
Environmental Characteristics Degree of protection, IP code IP67
Operating temperature range, °F -4 – +122
Battery type 18650
Capacity, mAh 3200
Battery pack operating time (at t=22°C), h* 8
External power supply, V 5V (Type-C USB)
Weight & Dimensions Dimensions, inches 14.6×3.5×3
Weight, pounds 2.6
