Description
The S3R offers a 3.5× base magnification with detection up to 1,969 yards.
The STORM series is powered by a replaceable 18650 battery. The innovative 90-degree, quick-detach battery cap design facilitates effortless battery swapping, ensuring minimal downtime during your hunting adventures.
Unlike other scopes where the Picture-in-Picture (PIP) image is simply magnified along with the outer image, the STORM allows you to adjust the magnification level of the PIP image independently, enabling users to maintain awareness of the surroundings and improve shooting accuracy using the PIP function.

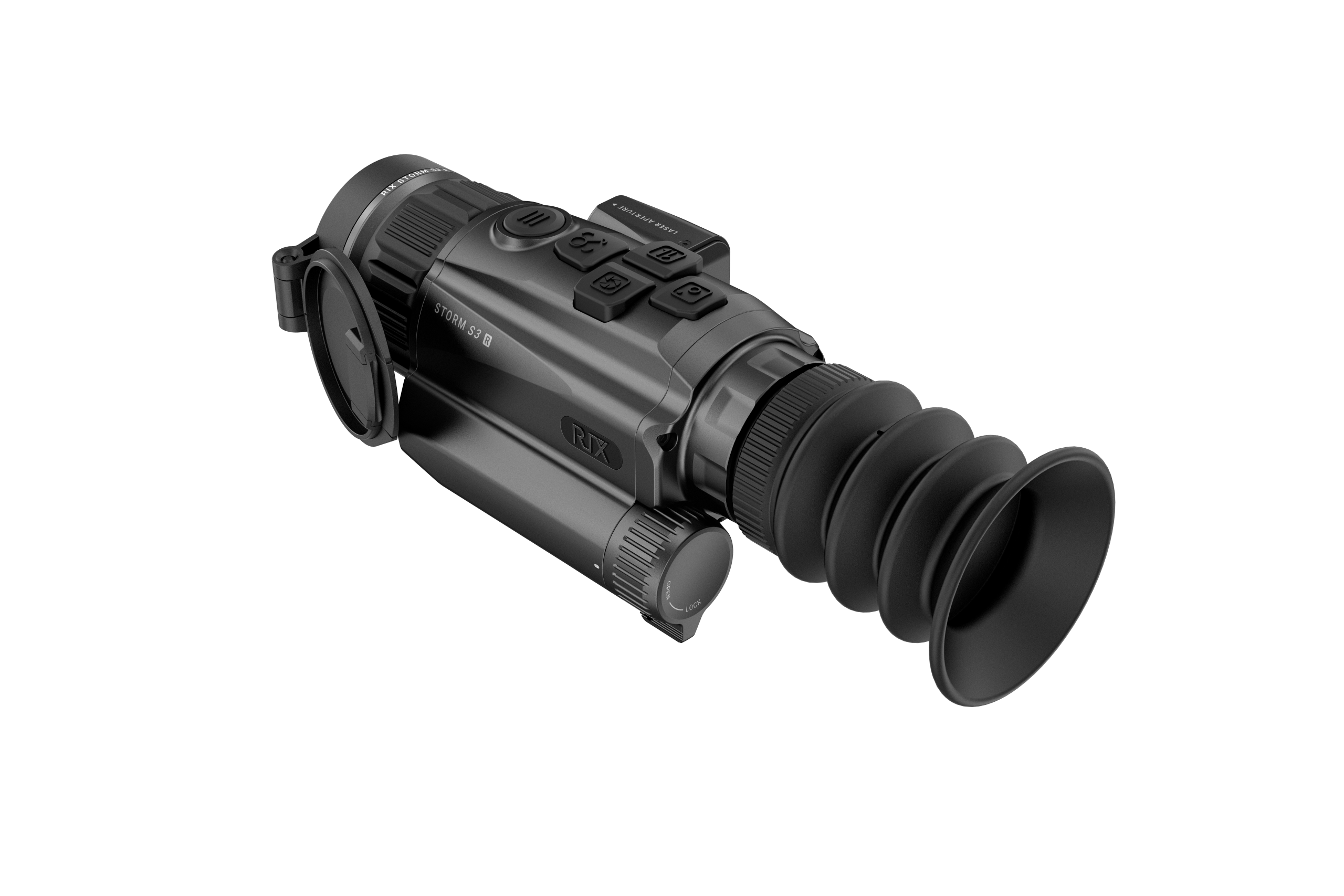

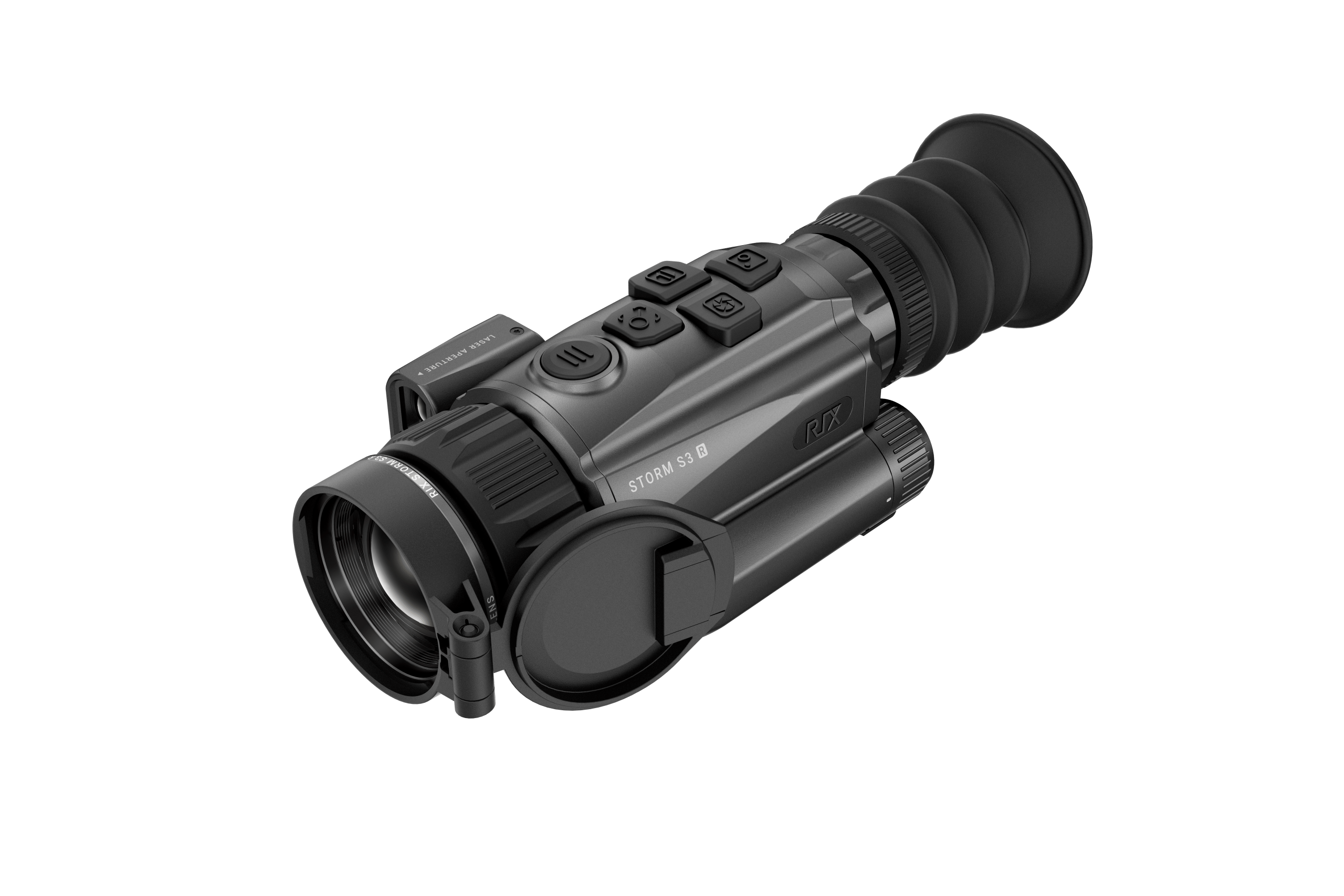

STORM S3R Thermal Imaging RifleScopes
CORE CHARACTERISTICS
Sensor Resolution:
384×288
Objective Lens:
35mm
OpticalZoom:
3.5x
Display Resolution:
1024×768
NETD, mK:
<25mK
DESCRIPTION
| Model | S3R | |
| Sensor Specifications | Type | VOx Uncooled |
| Resolution, pixels | 384×288 | |
| Pixel pitch, μm | 12 | |
| NETD, mK | <25 | |
| Frame Rate, Hz | 50 | |
| Optical Specifications | Objective Lens，mm | 35 |
| Optic Zoom, x | 3.5 | |
| Field of View, degrees / yd @ 100 yd | 7.5°/13.2yd | |
| Digital Zoom, x | 1 to 4 | |
| Eye Relief, mm | 48 | |
| Diopter Adjustment, D | -5 to +5 | |
| Detection Range, m/yd | 1800/1969 | |
| Display Specifications | Type | AOLED |
| Resolution, pixels | 1024×768 | |
| Wi-Fi | Wireless Protocol | Wi-Fi |
| Frequency, GHz | 2.4GHz | |
| Video Recorder | Video / Photo Resolution, pixel | 1024×768 |
| Video / Photo Format | .mp4 / .jpg | |
| Built-in Memory, GB | 32 | |
| Physical Specifications | Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to+122 | |
| Weight, lb | 1 | |
| Dimensions, inch | 5.3×2.7×2.2 | |
| Connections and Compatibilities | Battery Type | 18650 |
| Capacity, mAh | 3800 | |
| Operating Time on Battery Pack (at t=72°F), h | 5 | |
| External Power Supply, V | 5V (Type C USB) | |
| Max Recoil Power on Rifled Weapon (Eo), g/Joules | 1000g/6000Joules | |
| Compatible Mounts | Picatinny mount | |
