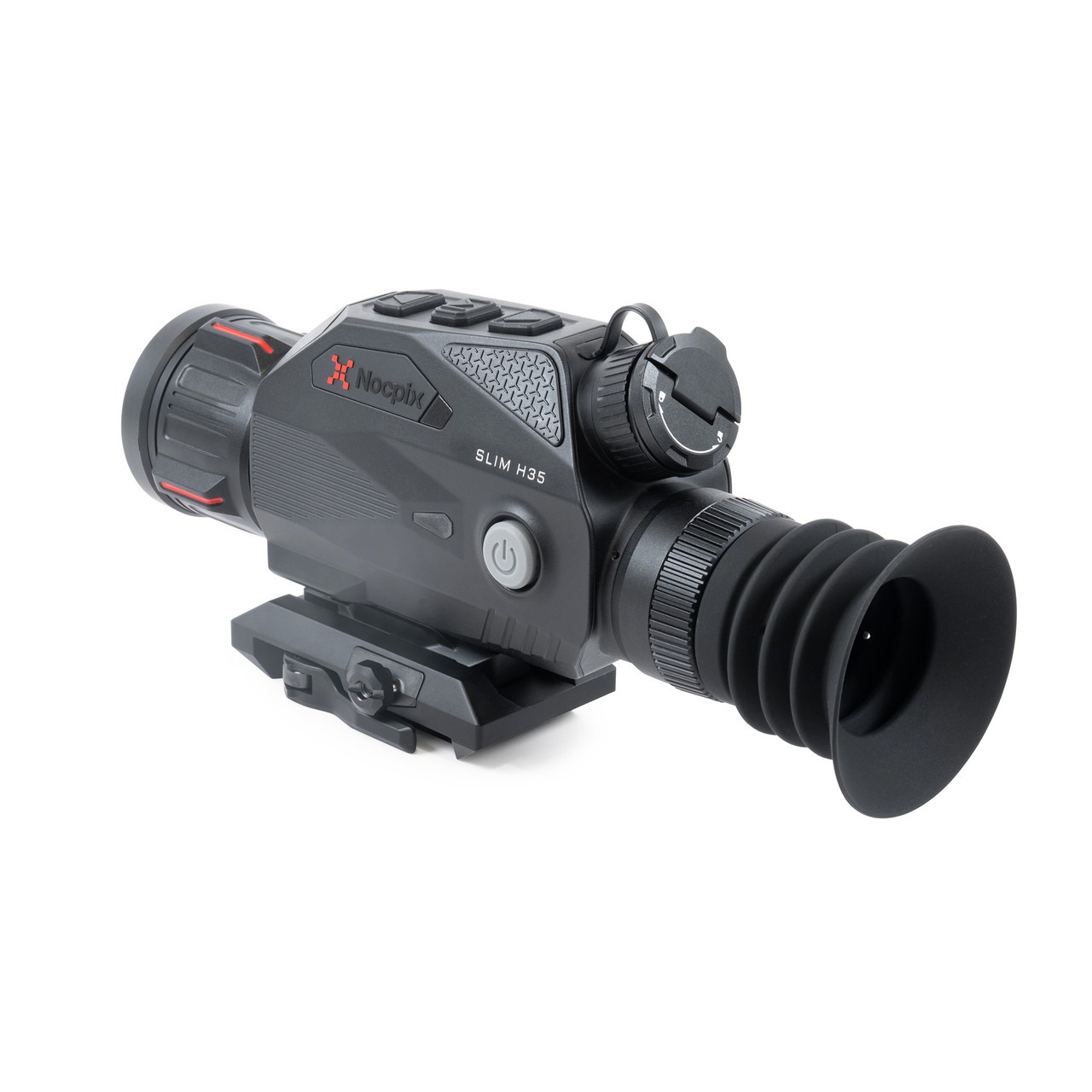

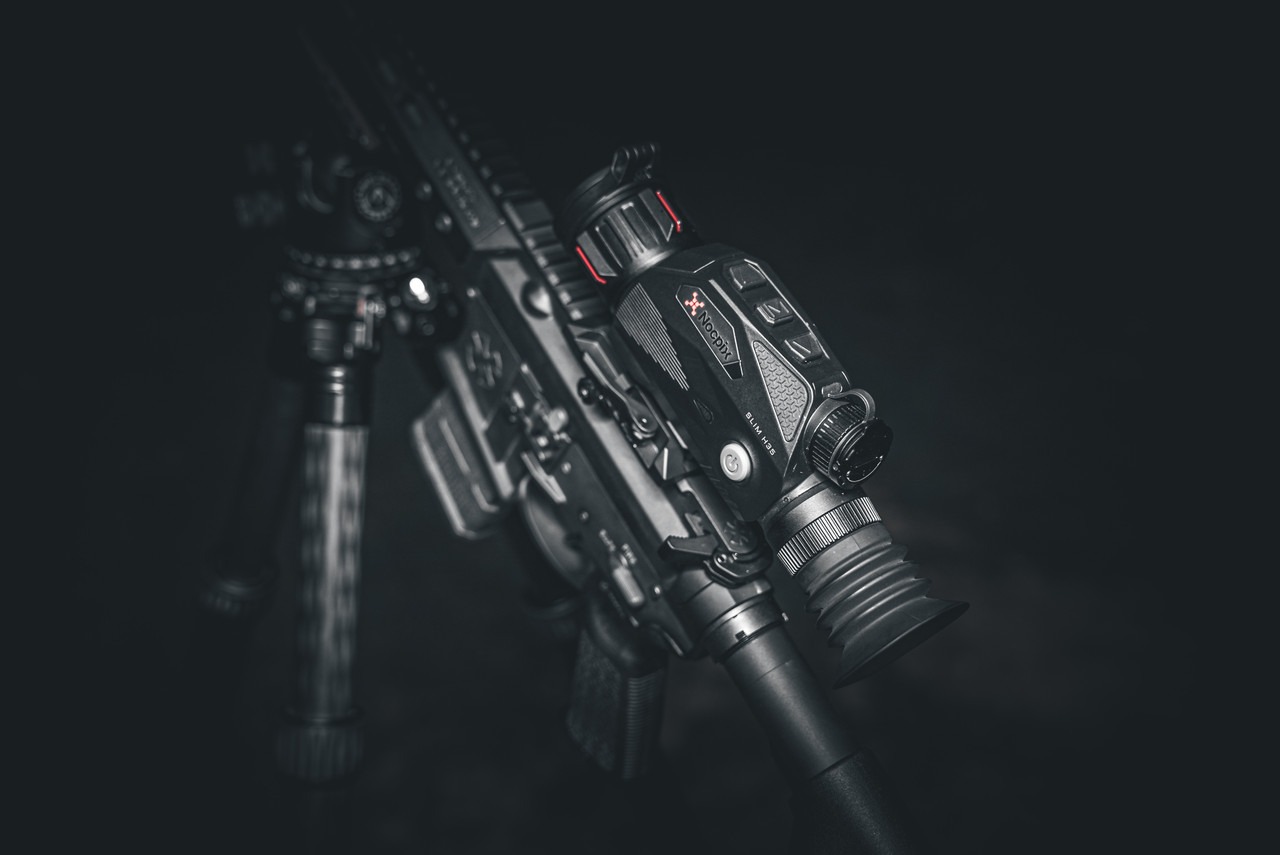

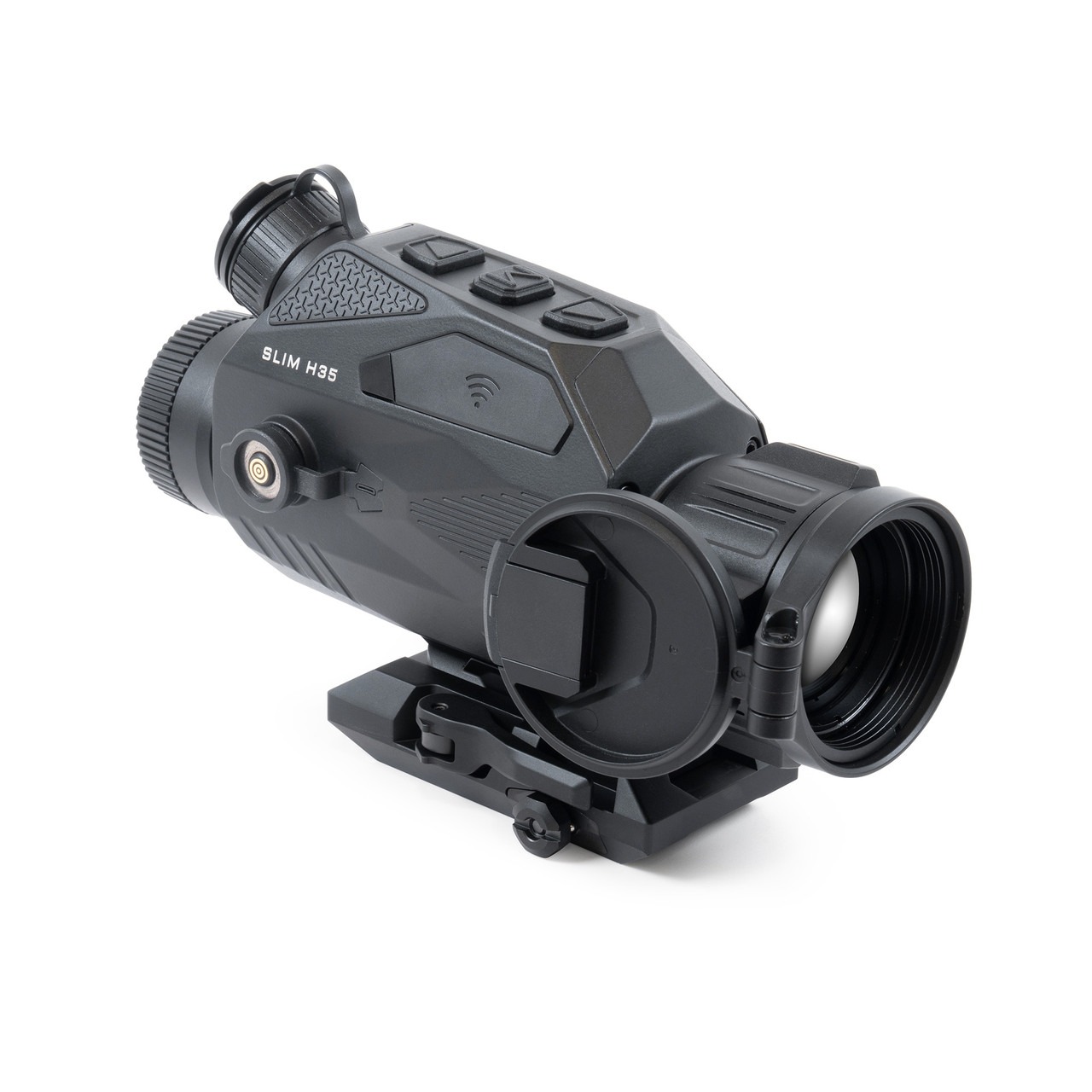

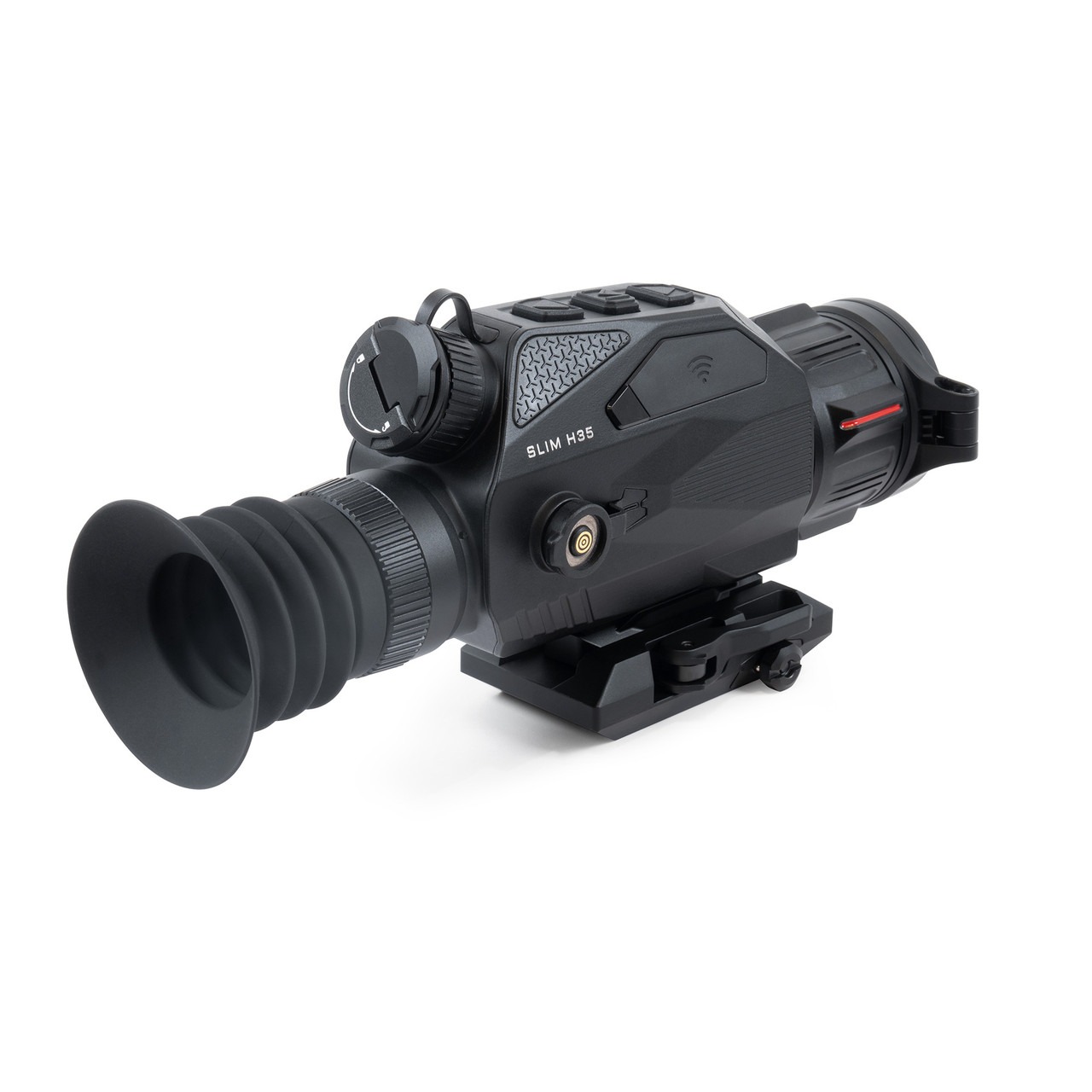

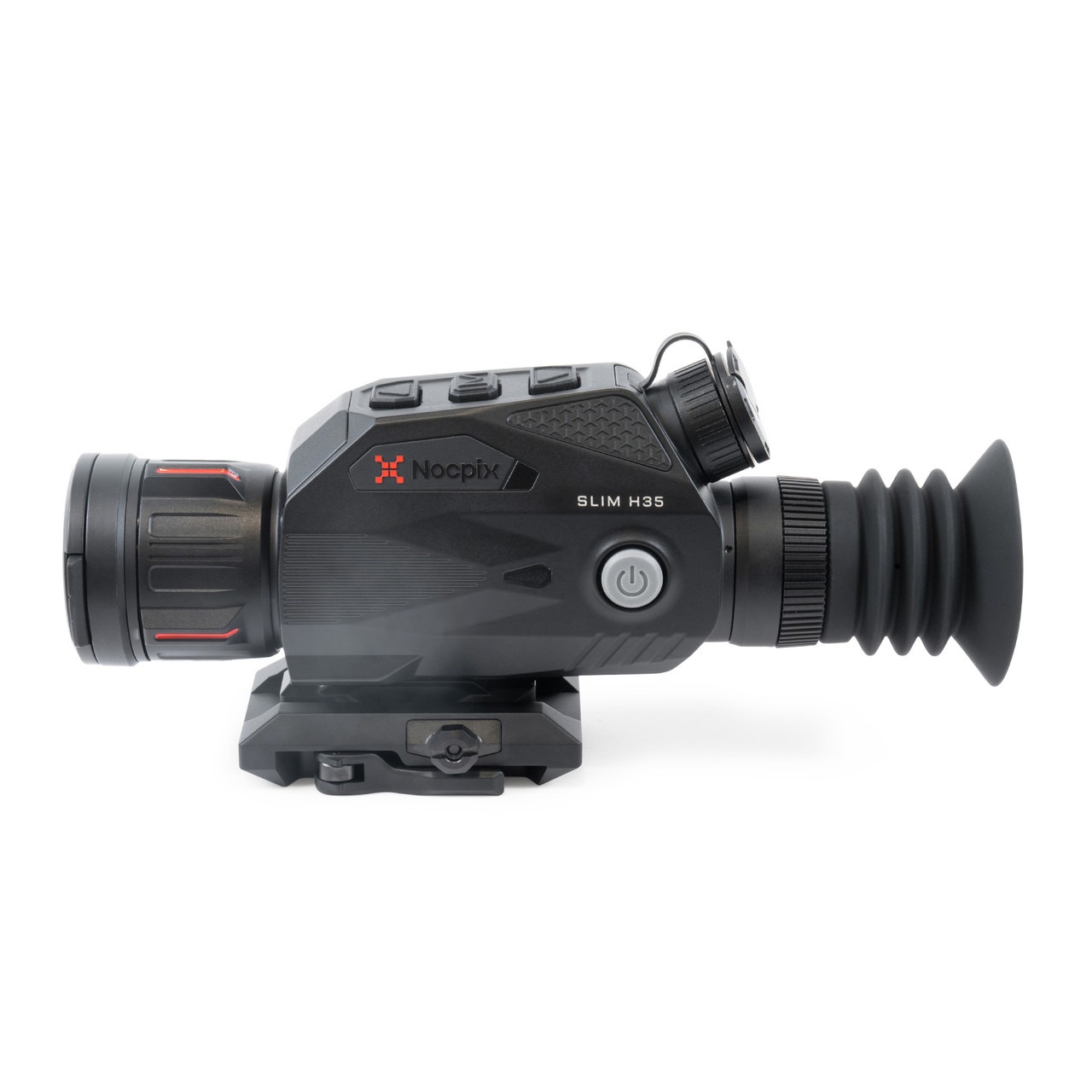

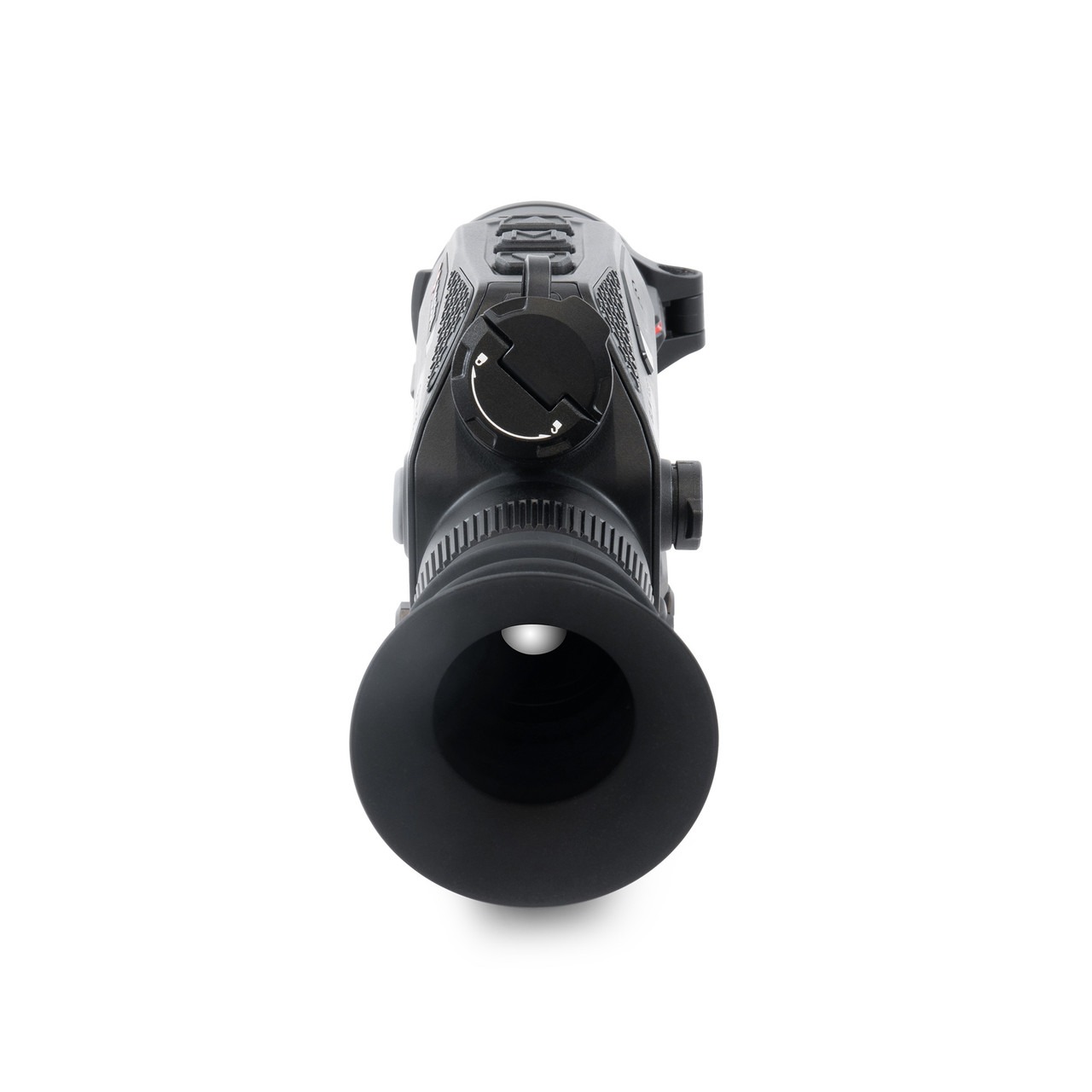

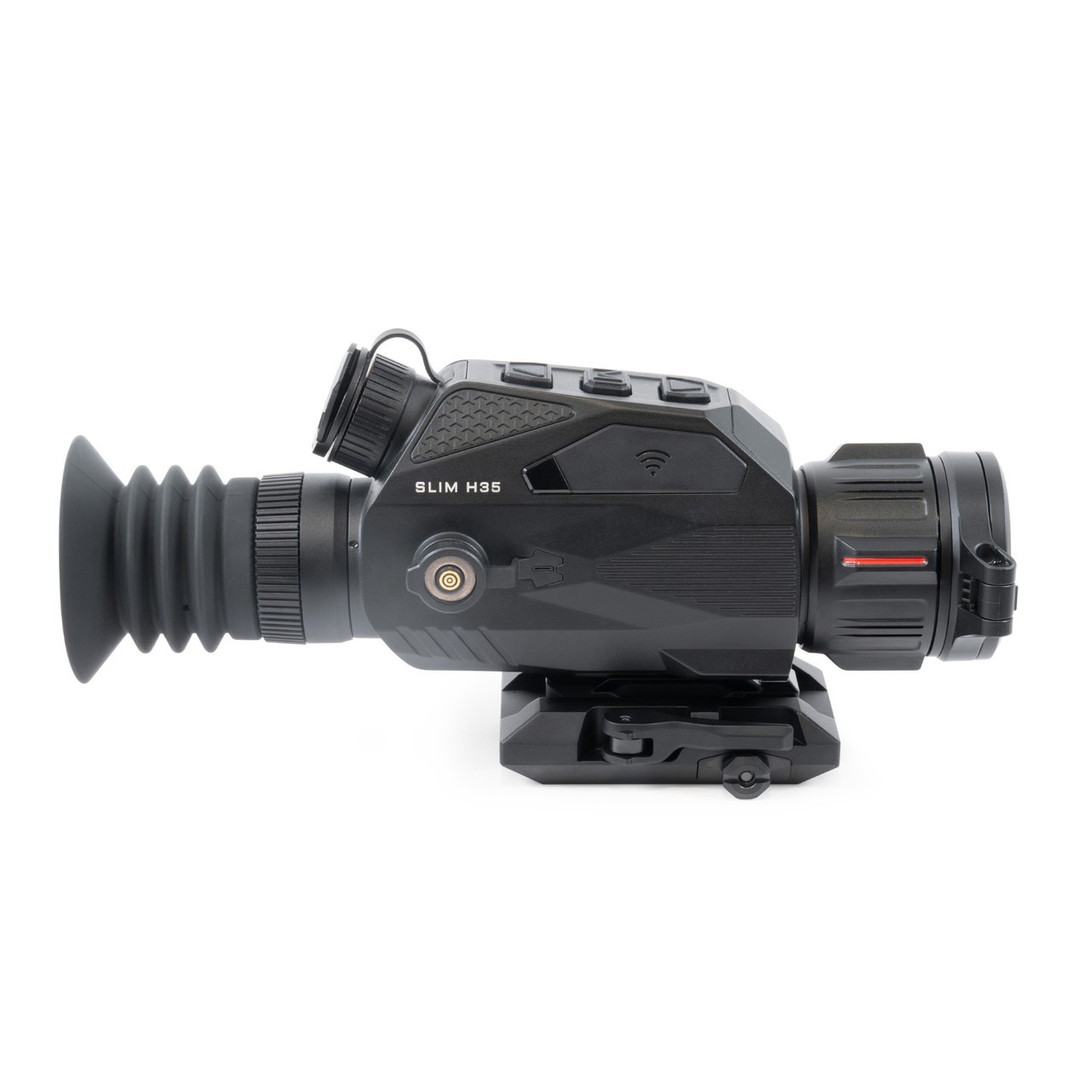

SLIM H35 Multi-function Thermal Optic 640×512 35 mm

$2,999.99

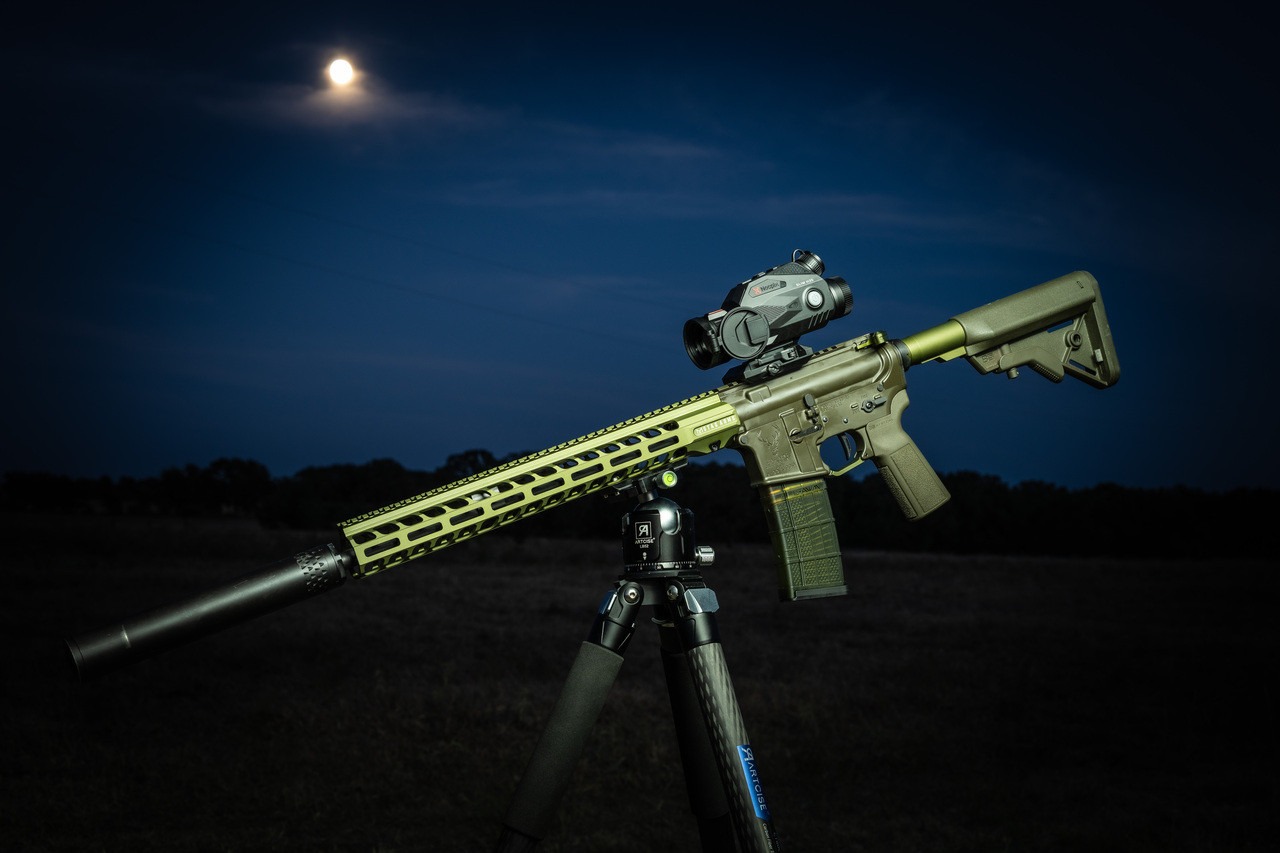

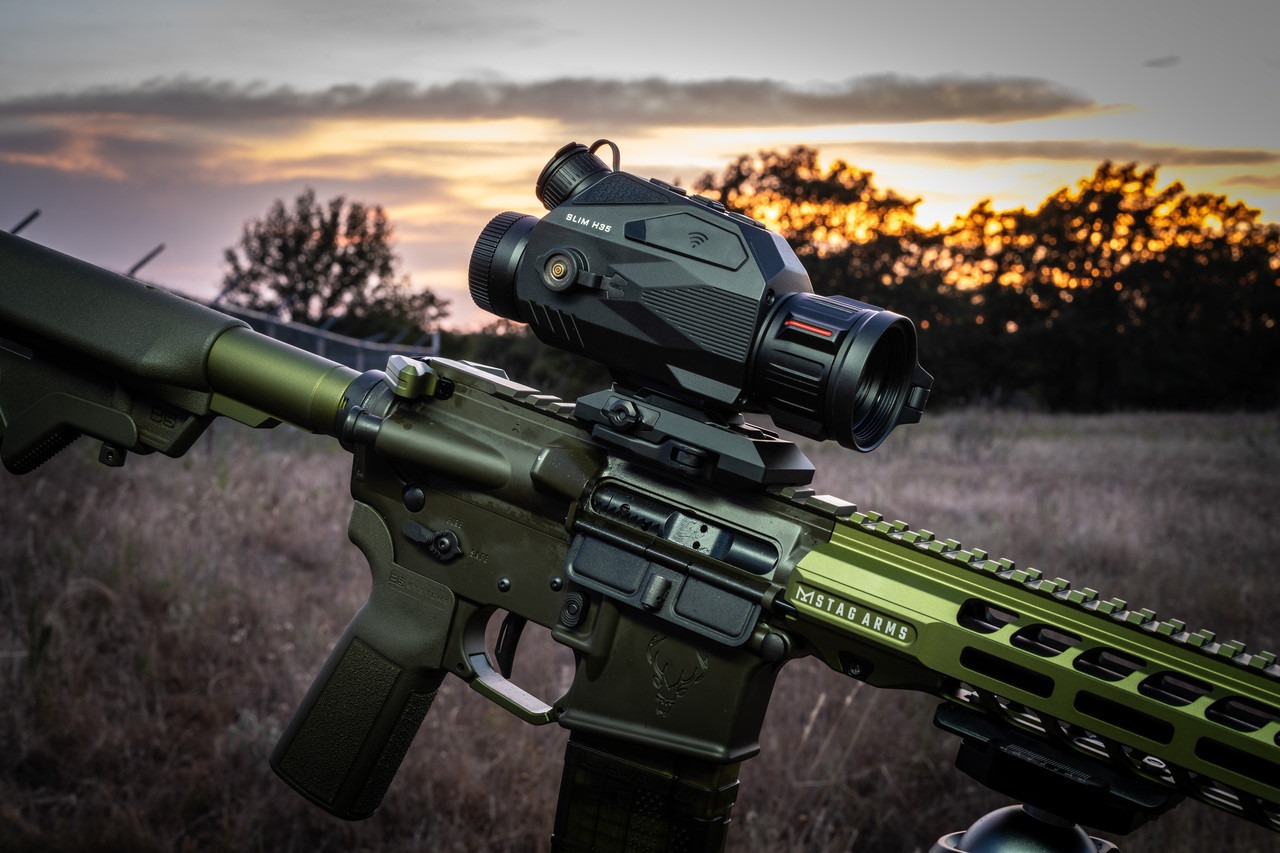

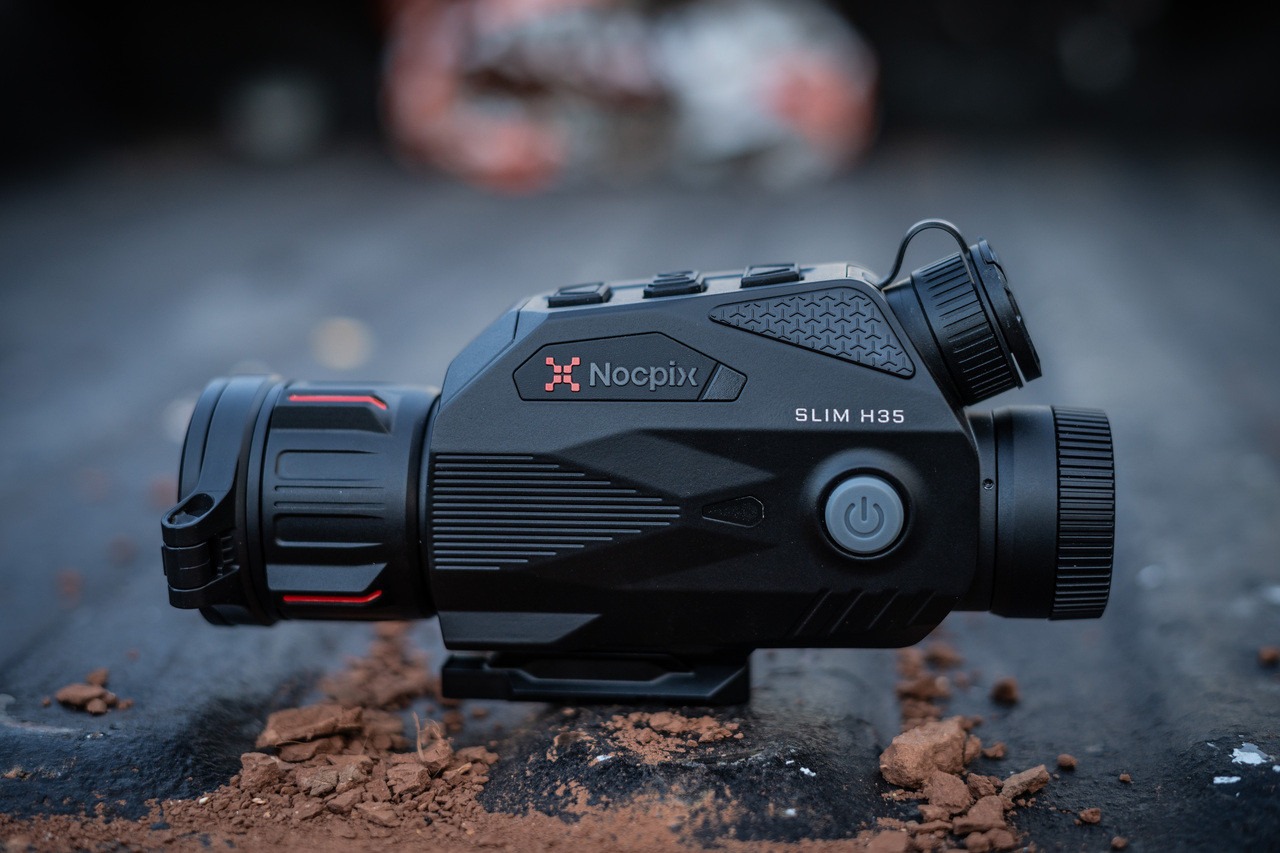

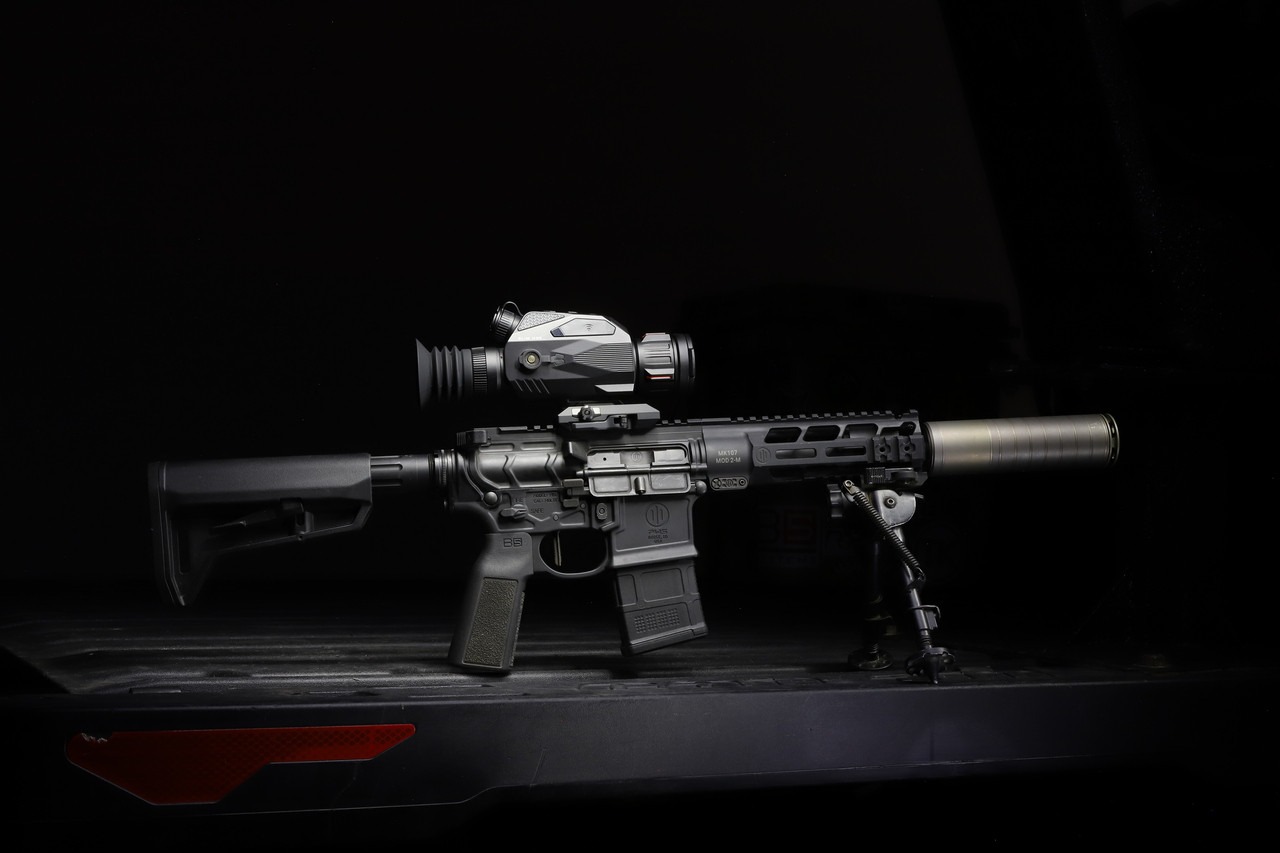

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

  • Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
  • Recoil-activated video automatically records footage before and after a shot.
  • High-contrast 1024×768 AMOLED display provides increased clarity and detail.

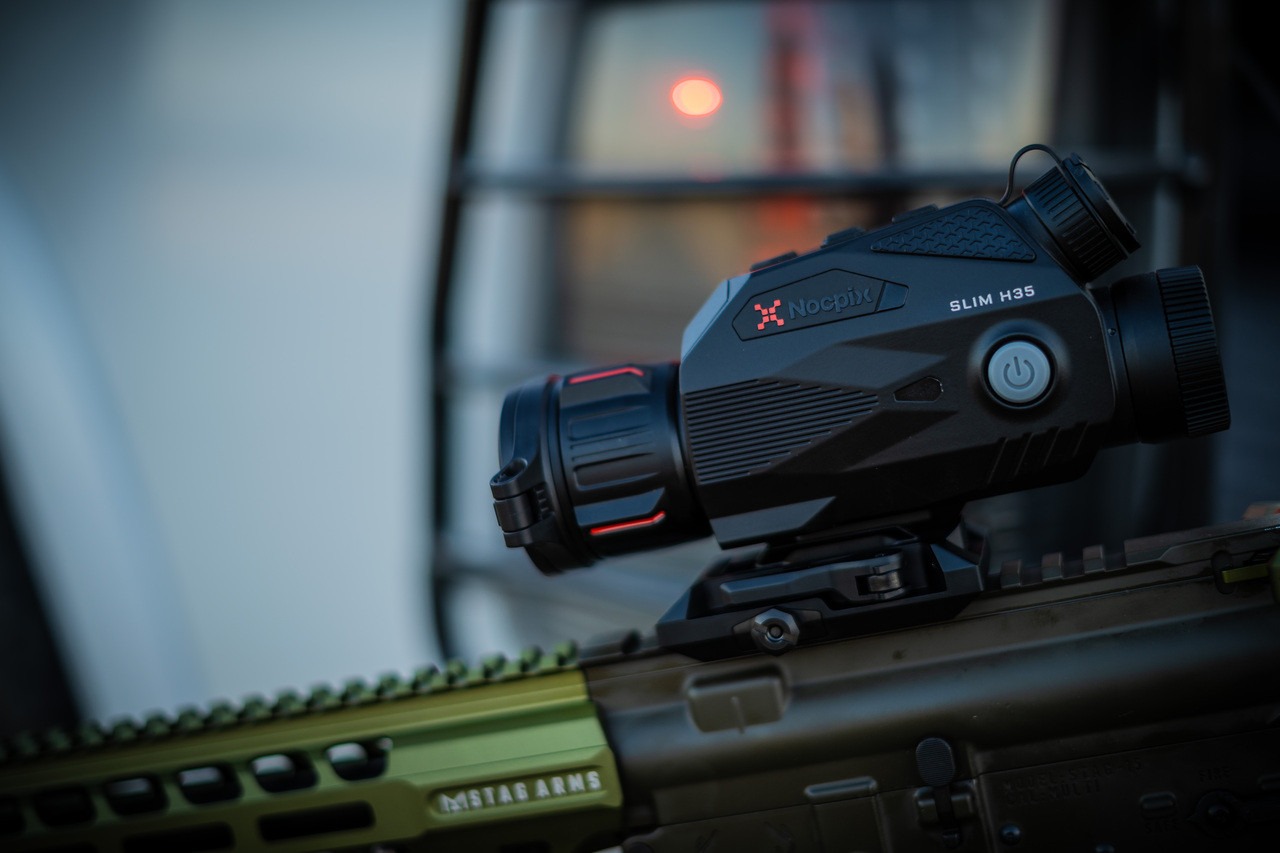

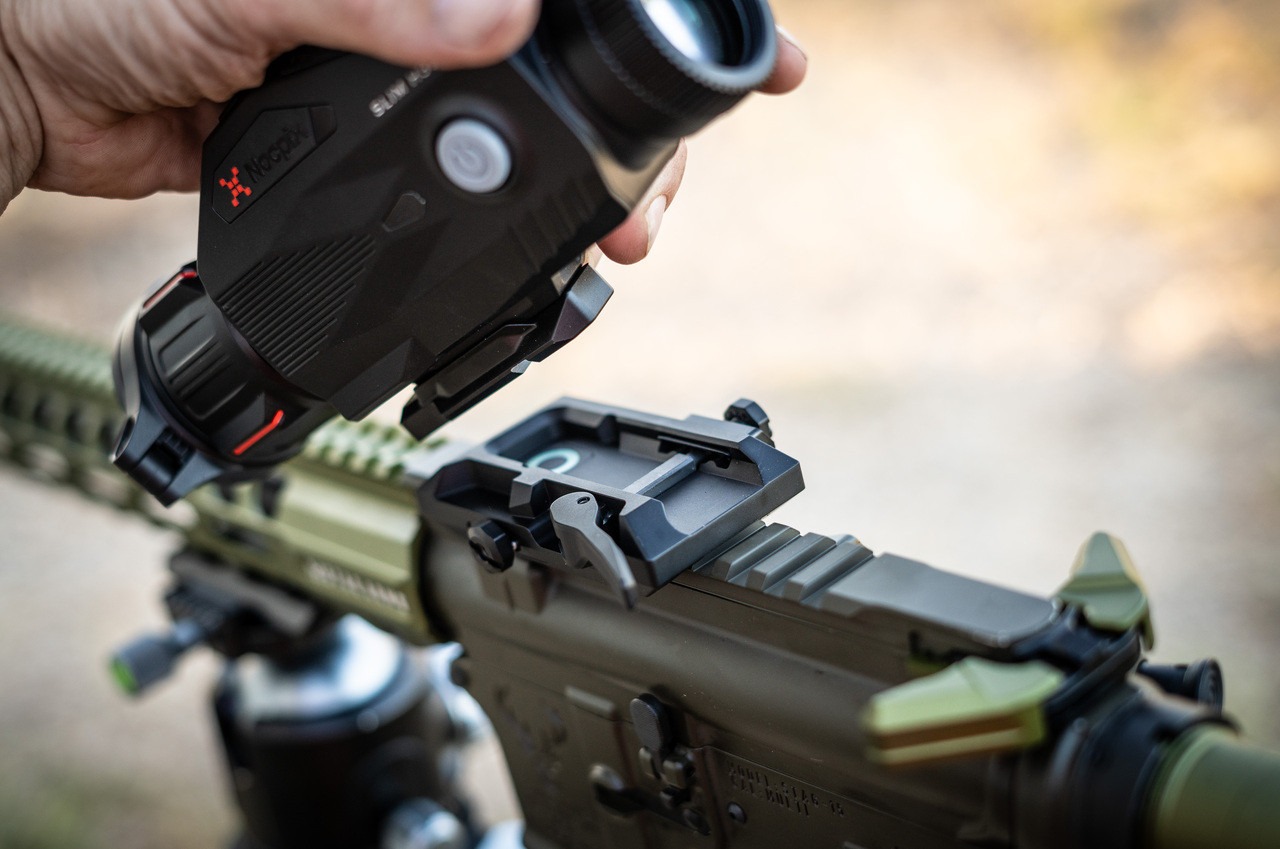

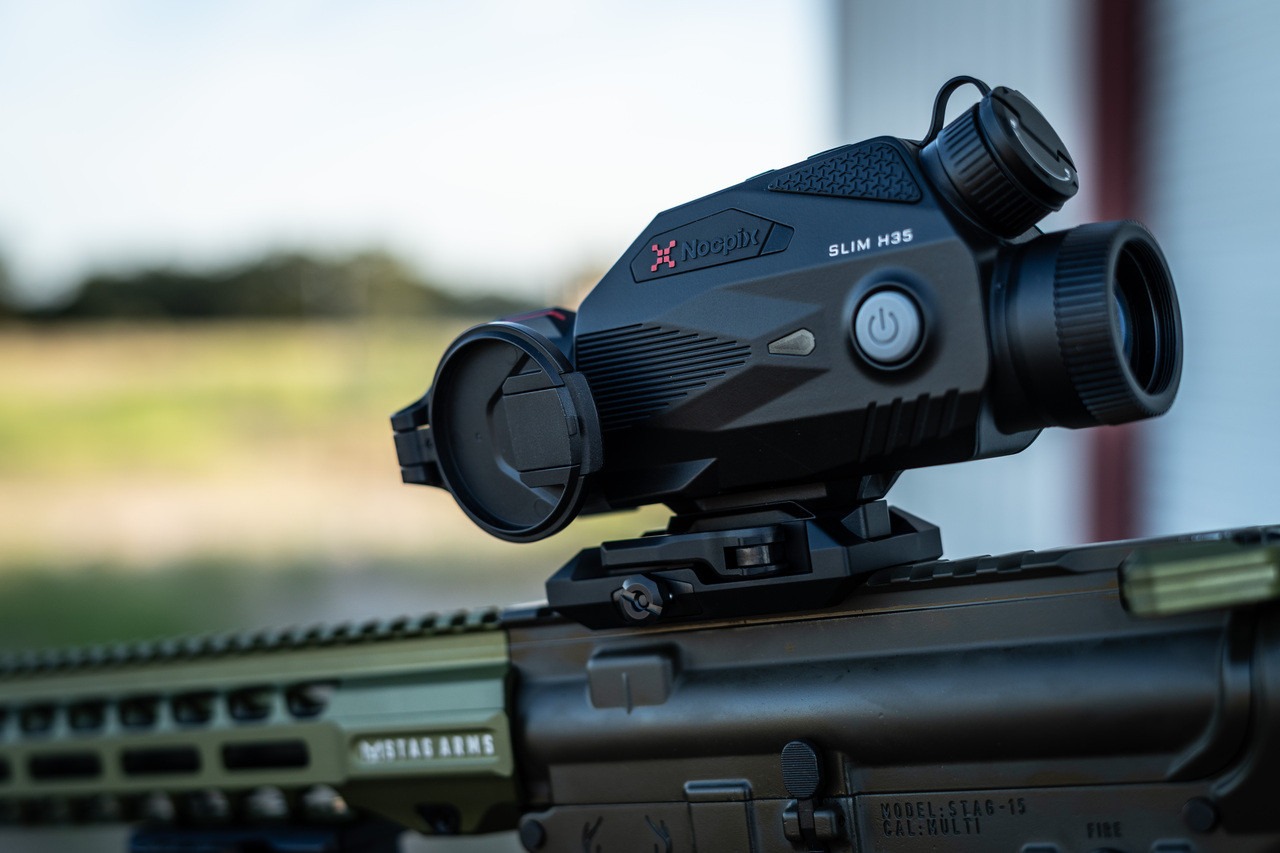

  • Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
  • Uses common 18650 style rechargeable batteries.
  • Available in high and standard-resolution models.
  • Quick, secure charging via the magnetic charging port.

Description

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

  • Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
  • Recoil-activated video automatically records footage before and after a shot.
  • High-contrast 1024×768 AMOLED display provides increased clarity and detail.
  • Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
  • Uses common 18650 style rechargeable batteries.
  • Available in high and standard-resolution models.
  • Quick, secure charging via the magnetic charging port.

  • Optics

    Objective Focal Length

    35mm

    Display Type

    AMOLED

    Eye Relief

    48mm

    Digital Magnification

    4x

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    9.4°

    Horizontal Angular Field of View

    12.5°

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    35mm

    Objective Lens Material

    Germanium

    Display Resolution

    1024×768

    Detection Range

    1750 Yards

    Optical Magnification

    2X

  • Features & Performance

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Color Palettes

    White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    32GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Run Time

    4+

    Power Source

    USB-C External, 18650 Battery

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Reticle

    8 (1 Dynamic, 6 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Magnesium Alloy

    Weight

    18.70

    Height

    1.81

    Width

    2.99

    Length

    8.50

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    Nocpix 640

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <18mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Sensor Frame Rate

    50hz

    Sensor Resolution

    640×512
