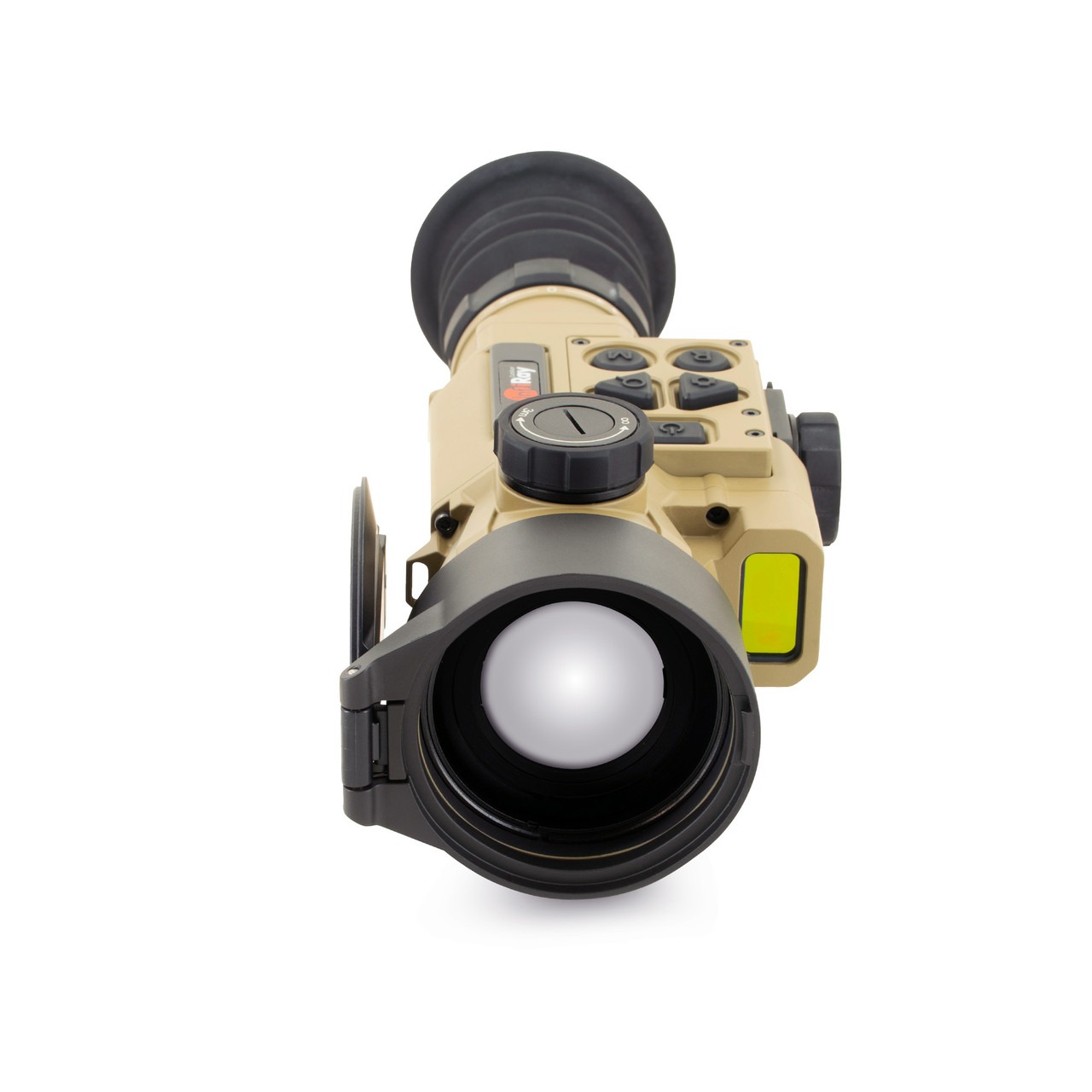

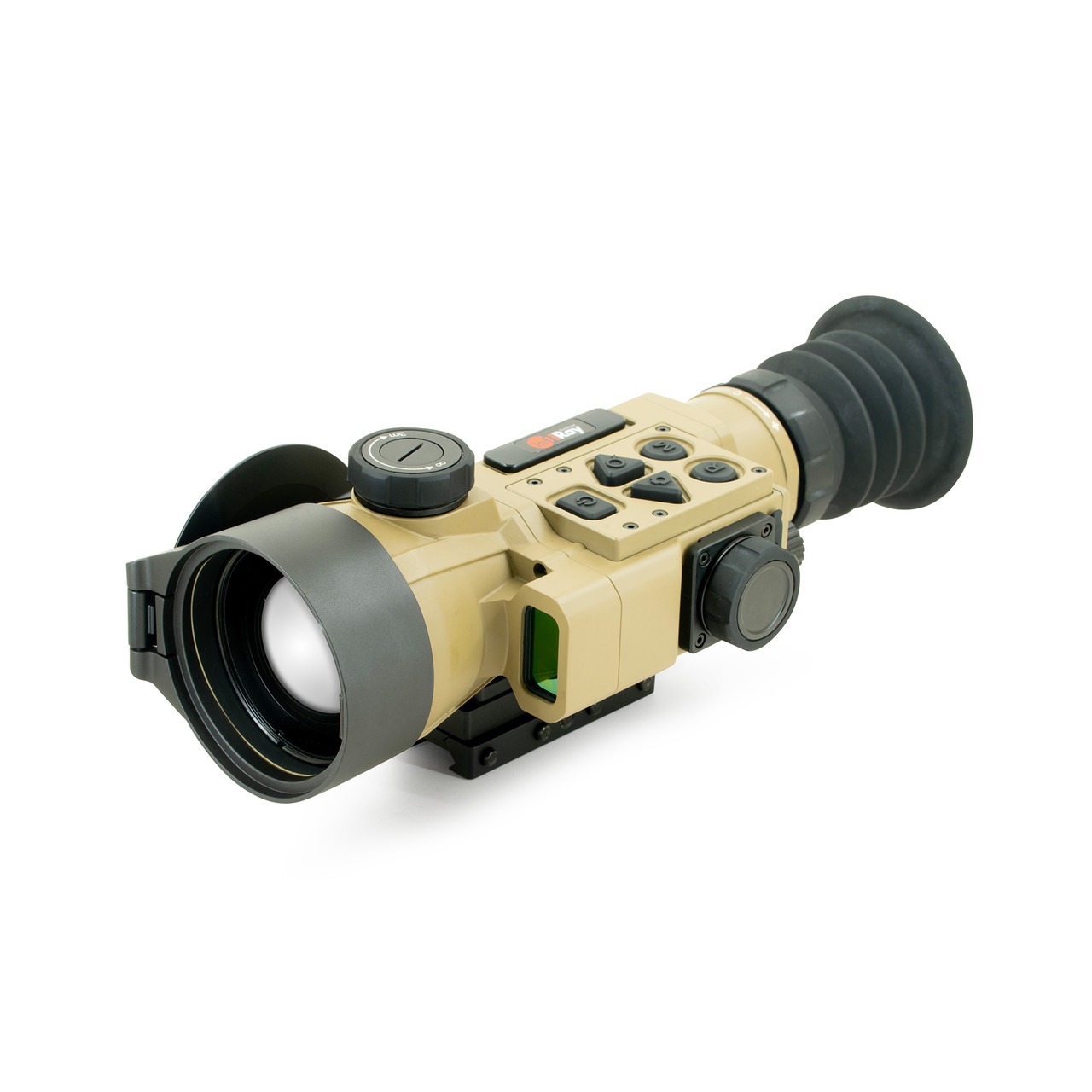

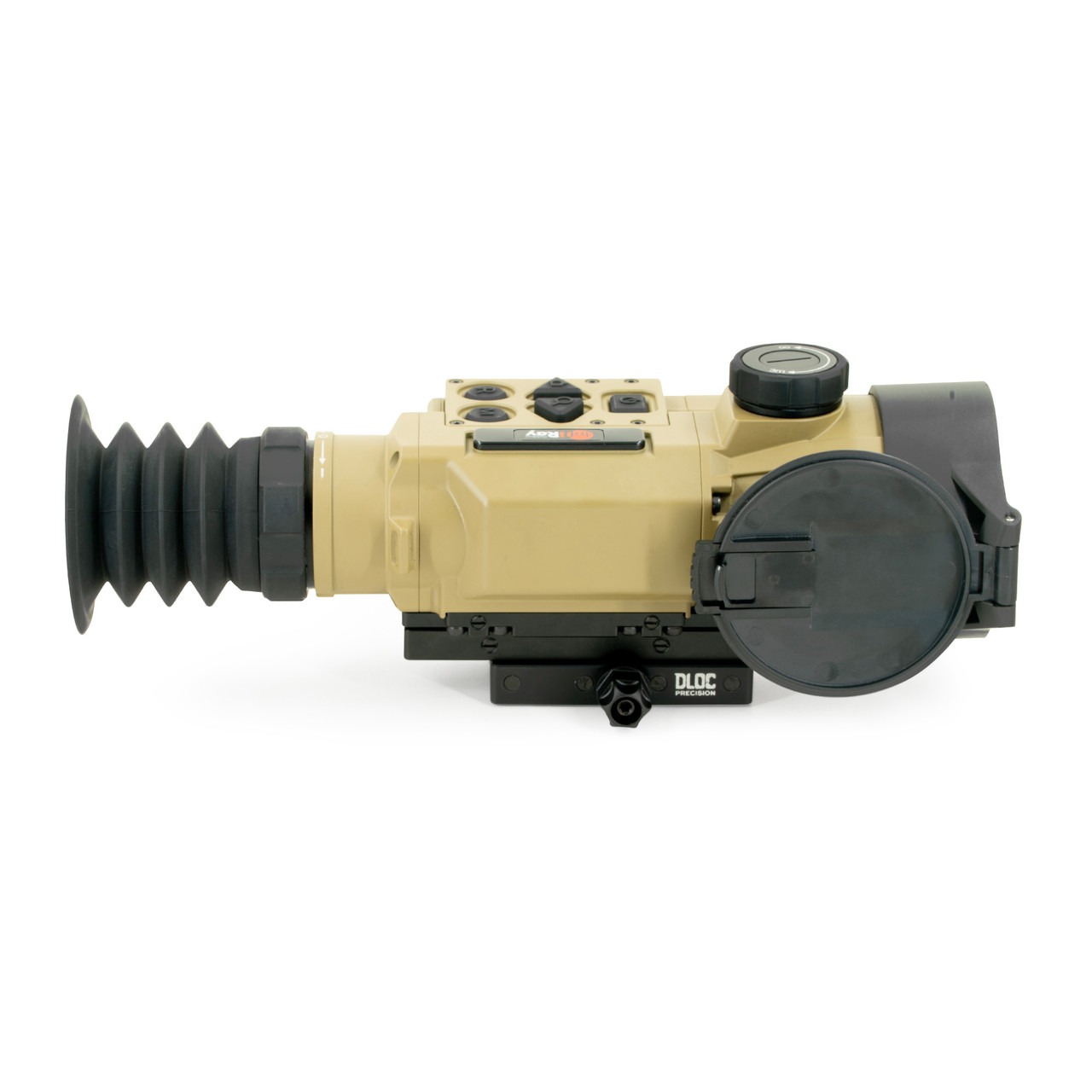

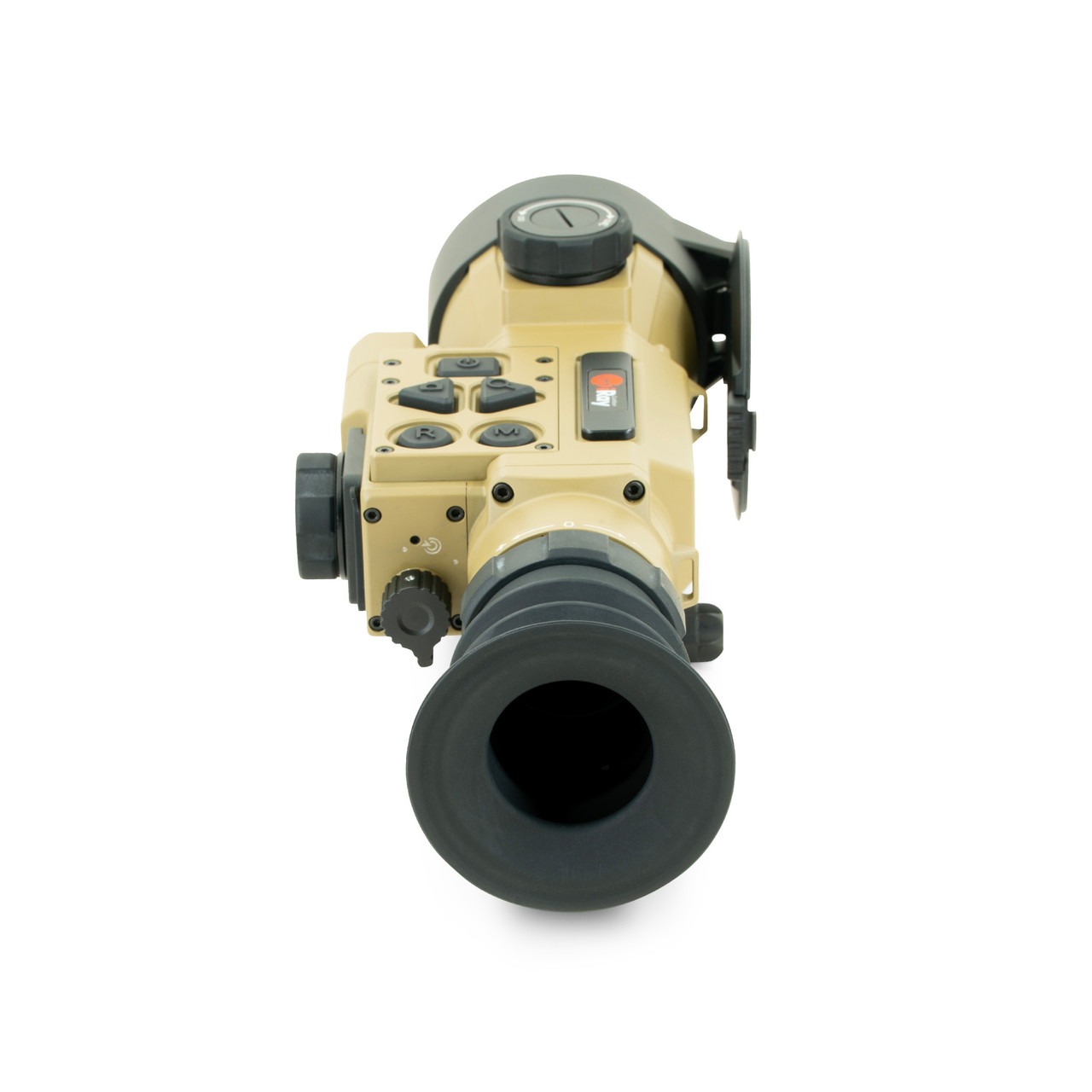

InfiRay Outdoor HYBRID Compact 3.5 640X480 LRF 50mm

The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and
video recording with 64GB of internal storage lets you capture every detail.

Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery , the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.

• Optics

  Objective Focal Length

  50mm

  Detection Range

  3060 Yards

  Optical Magnification

  3.5X

  Display Type

  AMOLED

  Eye Relief

  60mm

  Digital Magnification

  8X

  Diopter Range

  -5 to +5

  Vertical Angular Field of View

  5.5°

  Horizontal Angular Field of View

  7.3°

  Focusing Mechanism

  Manual Focus

  Objective F#

  0.9

  Objective Diameter

  50mm

  Objective Lens Material

  Germanium

  Display Resolution

  1440×1080
