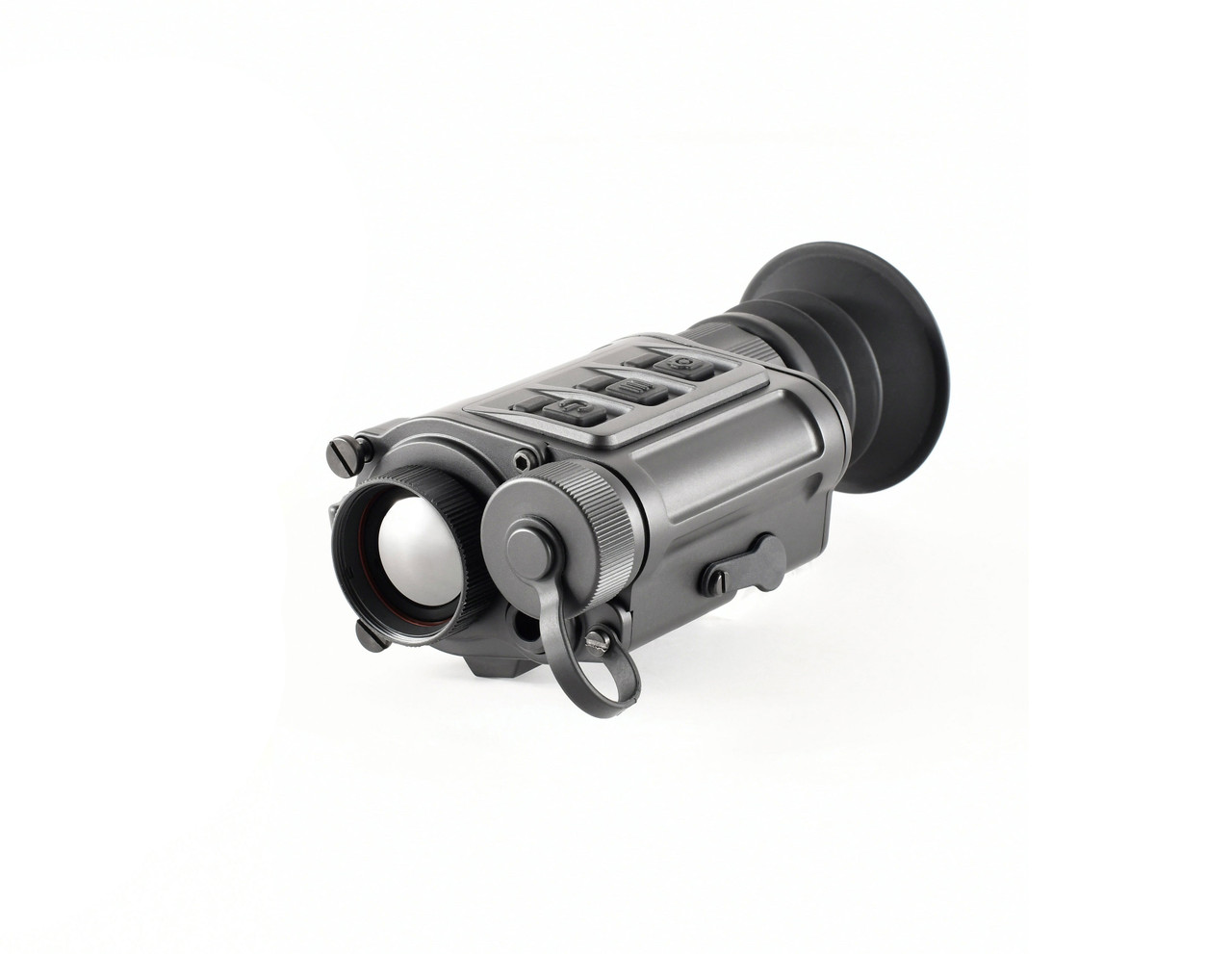

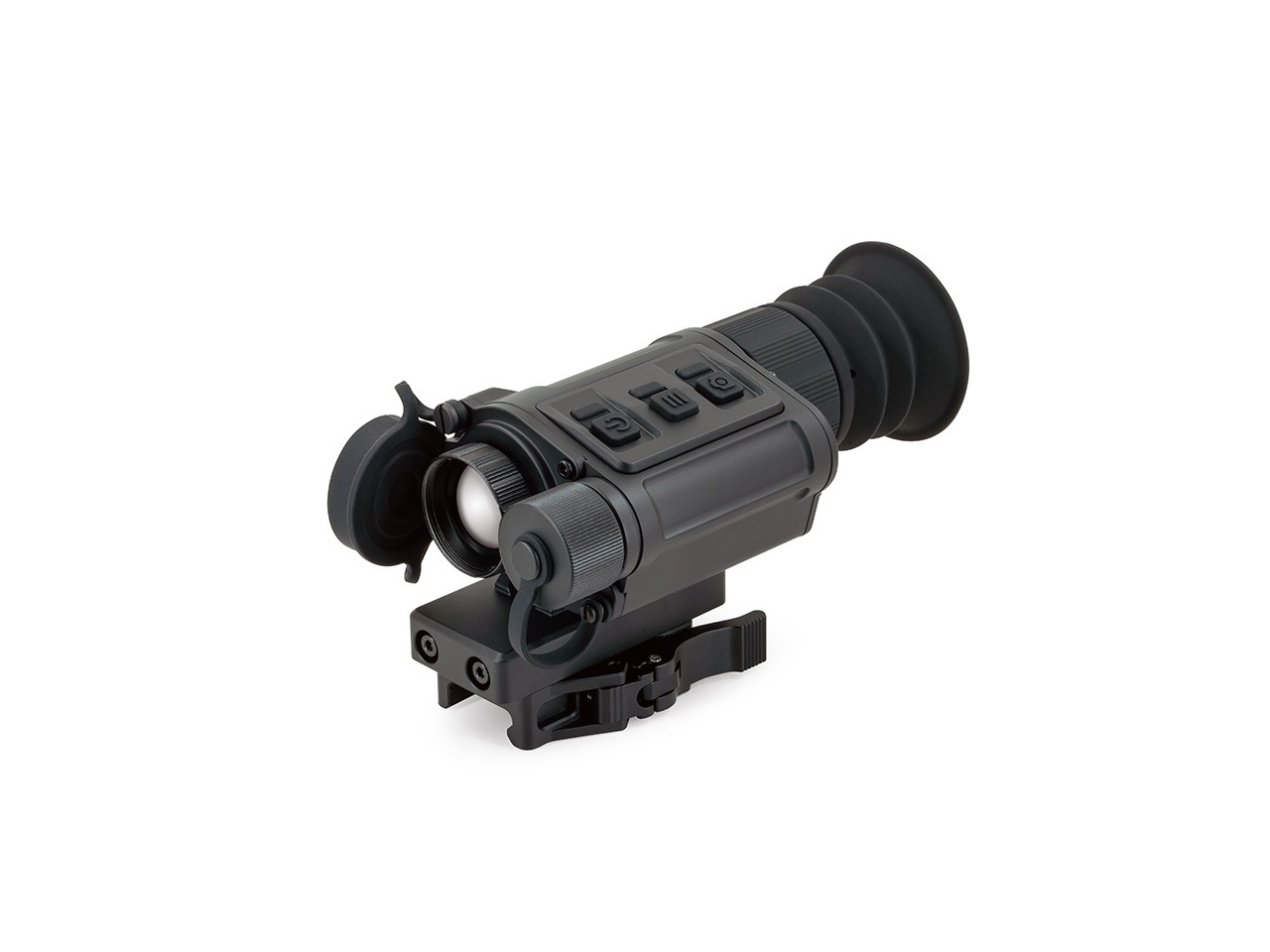

RICO MICRO RL25(v2) 384×288 12 Micron 25mm Multi-Purpose Monocular

$2,999.99

RICO MICRO RL25 v2 12 Micron 25mm Multi-Purpose Monocular

Device Technology: Thermal Imaging
Sensor Resolution: 384×288
Sensor Frame Rate: 60hz
Sensor Pixel Size: 12μm
Optical Magnification: 2X
Digital Magnification: 4X
Detection Range: 1375 Yards
Objective Focal Length: 25mm f/1.0
Objective Diameter: 25mm
Objective F#: 1.0
Onboard Recording: Video and Image



The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RL25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

In its newest variation, the RL25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight and now a thermal clip-on! The 384×288 12 µm thermal sensor has and improved NETD rating of ≤18mK and is paired with a 25 mm f/1.0 lens to provide a 2x native magnification. New RL25 V2 models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.  The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels.

SKU: TSORL25 Category: Tags: , , ,

Description

RICO MICRO RL25 v2 12 Micron 25mm Multi-Purpose Monocular

The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RL25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

In its newest variation, the RL25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight and now a thermal clip-on! The 384×288 12 µm thermal sensor has and improved NETD rating of ≤18mK and is paired with a 25 mm f/1.0 lens to provide a 2x native magnification. New RL25 V2 models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.  The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels.

Device Technology: Thermal Imaging
Sensor Resolution: 384×288
Sensor Frame Rate: 60hz
Sensor Pixel Size: 12μm
Optical Magnification: 2X
Digital Magnification: 4X
Detection Range: 1375 Yards
Objective Focal Length: 25mm f/1.0
Objective Diameter: 25mm
Objective F#: 1.0
Onboard Recording: Video and Image

Additional information

Digital Magnification, x

2X, 3X, 4X

Objective lens system

50mmF/1.0

Angular FOV at Optical Magnification (Horizontal x Vertical), degrees

H8.5° x V6.4°

Linear FOV at Optical Magnification @ 100yrds/90m (Horizontal x Vertical), yd/m

H15 / 13.7 x V11.2 / 10.2

Eye relief, mm

46.6

Focus range, yard

0.8 to infinity

Diopter Adjustment, D

-5; +5

Reticle W/E adjustment increments per pxl

0.54” at 1X (3.0x magnification)
0.14” at 4X multiplication

Core resolution, pxl

640 x 480

Pixel pitch, µm

12

Start-up time, min., sec.

20

Image refresh rate, Hz

50

Thermal Sensitivity (NETD), mK

<40

Display type and resolution, pxl

OLED 1024×768

Detection Range, (6 ft tall target), approx., yd/m

2200 / 2000

Dimensions, in/mm

8.46”x3.15”x2.36” / 215x80x60

Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g

20 / 570

Power supply

3V CR123 (two) or
3.7V rechargeable (two)
or 5V DC (USB C-type)

Estimated battery life, hours

3.5 from two 3V CR123

Operating temperature, typical, °F

-14°F to +122°F

Water intrusion/°С

IP66

Humidity, %

up to 96%
