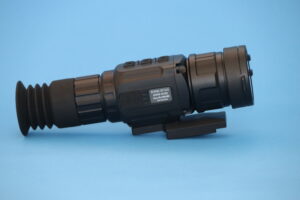

SUPER YOTER R 3.0-12.0x50mm Compact Thermal Weapon Sight


Super Yoter R50 thermal weapon scope 3X base mag,12µm Vanadium Oxide (VOx) 640×480 core resolution with 50Hz refresh rate. Well suited for predator control or hog hunting.

SKU: BE46050L Category: Tag:


Super Yoter 50mm, 3X Base Magnification, 640 Core Resolution, Larue QD mount, 4yr warranty

The SUPER YOTER R Compact Thermal Weapon Sight features: advanced 12µm Vanadium Oxide (VOx) 640×480 core resolution, with 50Hz refresh rate that makes the scope ideal for predator control at medium to long-range distances. This thermal Scope has an optical magnification of 3.0x and digital zoom of 2X, 3X, 4X.

The scope comes with a reliable low profile Quick-Detach LaRue Tactical® lockable mount.  The (SY) is Wi-Fi capable that allows media recording to mobile device (with required iOS or Android App).

There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options. A unique adjustable stradia-metric rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the Super Yoter R are a wide selection of the image adjustment options as well as the image background adjustment and calibration.

Additional information

Digital Magnification, x

2X, 3X, 4X

Objective lens system


Angular FOV at Optical Magnification (Horizontal x Vertical), degrees

H8.5° x V6.4°

Linear FOV at Optical Magnification @ 100yrds/90m (Horizontal x Vertical), yd/m

H15 / 13.7 x V11.2 / 10.2

Eye relief, mm


Focus range, yard

0.8 to infinity

Diopter Adjustment, D

-5; +5

Reticle W/E adjustment increments per pxl

0.54” at 1X (3.0x magnification)
0.14” at 4X multiplication

Core resolution, pxl

640 x 480

Pixel pitch, µm


Start-up time, min., sec.


Image refresh rate, Hz


Thermal Sensitivity (NETD), mK


Display type and resolution, pxl

OLED 1024×768

Detection Range, (6 ft tall target), approx., yd/m

2200 / 2000

Dimensions, in/mm

8.46”x3.15”x2.36” / 215x80x60

Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g

20 / 570

Power supply

3V CR123 (two) or
3.7V rechargeable (two)
or 5V DC (USB C-type)

Estimated battery life, hours

3.5 from two 3V CR123

Operating temperature, typical, °F

-14°F to +122°F

Water intrusion/°С


Humidity, %

up to 96%
